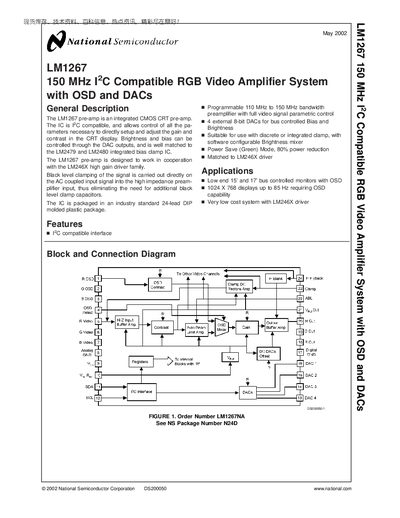

National Semiconductor LM1267 150 MHz I2C Compatible RGB Video Amplifier System with OSD DACs Datasheet
The LM1267 is an integrated CMOS pre‑amplifier designed for CRT displays. It provides I²C‑compatible control of gain, contrast, brightness and black‑level, and works with the LM246X driver family. The device is packaged in a 24‑lead DIP.
Key features include a programmable bandwidth of 110 MHz to 150 MHz, four external 8‑bit DACs for bias and brightness control, a power‑save mode that reduces consumption by 80 %, and extensive OSD functionality with selectable video or OSD inputs.
National Semiconductor LM1267 specifications
| Programmable Bandwidth | 110 MHz to 150 MHz |
|---|---|
| Video Output Amplitude | 2 Vp‑p |
| External DAC Count | 4 (8‑bit) |
| Power‑Save Mode Reduction | 80 % power reduction |
All National Semiconductor LM1267 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating bandwidth of the LM1267?
The LM1267 can be programmed for a bandwidth up to 150 MHz.
How many external DACs does the LM1267 have and what are they used for?
It has four external 8‑bit DACs that provide bus‑controlled bias and brightness adjustments.
What is the maximum operating bandwidth of the LM1267?
The LM1267 can be programmed for a bandwidth up to 150 MHz.
How many external DACs does the LM1267 provide?
It includes four 8‑bit external DACs for bus‑controlled bias and brightness.
