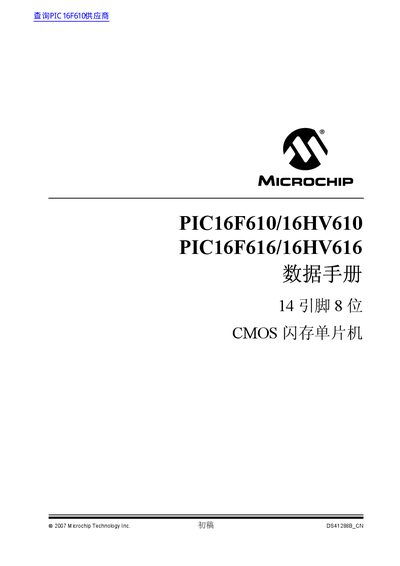

This document describes the features and characteristics of the 14-pin 8-bit CMOS flash microcontrollers PIC16F610/16HV610 and PIC16F616/16HV616 produced by Microchip Technology Inc.
The PIC16F610, PIC16F616, PIC16HV610 and PIC16HV616 are 8‑bit CMOS flash microcontrollers with 14 pins, a high‑performance RISC CPU and a 35‑instruction set. They operate from 2.0 V to 5.5 V (industrial) or up to a user‑defined maximum (extended‑temperature versions) and support up to 20 MHz clock speeds.
The handbook details memory organization, oscillator options, I/O ports, timer modules, comparator, A/D converter, enhanced capture/compare/PWM, voltage regulator, special CPU functions and development support. Electrical specifications such as standby current (50 nA) and watchdog timer current (1 µA) are provided, along with package information for PDIP, SOIC, TSSOP and QFN variants. This manual is written in Chinese.
| Program memory | 1024 words (PIC16F610/16HV610) |
|---|---|
| Operating voltage | 2.0 V to 5.5 V |
| Maximum clock speed | 20 MHz |
| Instruction cycle time | 200 ns |
| Standby current (2.0 V) | Typical 50 nA |
| Watchdog timer current (2.0 V) | Typical 1 µA |
| Number of I/O pins | 14 pins |
They operate from 2.0 V up to 5.5 V.
Each instruction (except jumps) executes in a single cycle of 200 ns.
Typical standby current is 50 nA.
Yes, it includes a watchdog timer with a typical current of 1 µA at 2.0 V.
