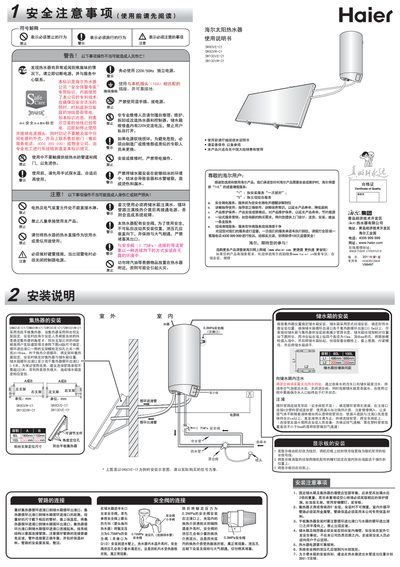

This document provides information about Haier self-service and installation instructions, as well as the installation and usage methods of SW80VE-C1, SW80VW-C1, SW100VE-C1, SW100VW-C1 models of water heaters.
The manual begins with safety warnings and general usage notes, emphasizing the need for a dedicated 220 V/50 Hz power source, proper grounding, and avoiding wet‑hand operation. It also outlines the risks of improper handling, such as potential injury or fire, and provides contact information for Haier service.
Subsequent sections cover installation of the storage tank and collector, wiring of circulation pipes, setting temperature and volume, operation modes (quick‑heat, reservation bath, energy‑saving display), and routine maintenance. Detailed diagrams, button functions, and troubleshooting tips are included to help users operate and service the solar water heater safely and efficiently. This manual is written in Chinese.
| Tank capacity | 80 L (SW80 models) / 100 L (SW100 models) |
|---|---|
| Heating power | 2500 W |
| Operating voltage | 220 V~ 50 Hz |
| Maximum pressure rating | 0.75 MPa |
| Dimensions (80 L model) | 492 × 492 × 958 mm |
| Dimensions (100 L model) | 492 × 492 × 1128 mm |
| Temperature setting range | 45 °C – 75 °C |
| Recommended maximum pipe length | 3 m (single run) |
| Volume setting range | 80 L / 100 L / 120 L |
Check that the temperature setting is not too low and that the tank is filled with water, then reset the temperature setting.
The circulation pipe should not exceed 3 meters in a single run to avoid excessive heat loss.
