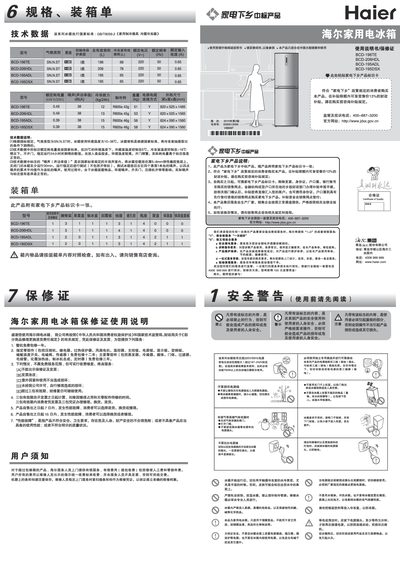

This manual provides the technical specifications, packing list, and warranty information for Haier household refrigerators BCD‑196TE, BCD‑206HDL, BCD‑195ADL and BCD‑195DSX. It explains the rated power consumption, noise level, cooling capacity, refrigerant type and dimensions for each model.
The guide also covers safe installation, proper use, cleaning, maintenance, and troubleshooting. Safety warnings, lock/unlock procedures, quick‑freeze, holiday and AI‑assist functions are described, along with common fault codes and how to obtain service support. This manual is written in Chinese.
| Rated power consumption (kWh/24h) – BCD‑196TE | 0.49 |
|---|---|
| Rated power consumption (kWh/24h) – BCD‑206HDL | 0.49 |
| Noise level (dB(A)) – BCD‑195ADL | 38 |
| Refrigerant type – All models | R600a |
| External dimensions (mm) – BCD‑196TE | 620 × 525 × 1485 |
Press the C key; the quick‑freeze indicator (G) lights up and the freezer enters quick‑freeze mode for up to 24 hours.
Press FB + D simultaneously for 3 seconds to lock; press B + D for 3 seconds to unlock.
