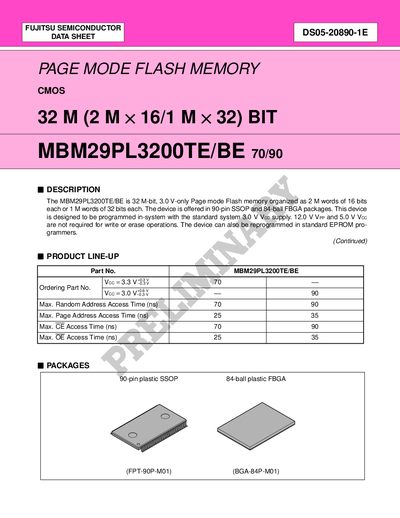

FUJITSU SEMICONDUCTOR MBM29PL3200TE/BE70/90 Datasheet
The MBM29PL3200TE/BE is a 32 M-bit Page Mode Flash Memory organized as 2 M words of 16 bits or 1 M words of 32 bits. It features single 3.0 V operation for read, program, and erase functions, eliminating the need for higher voltages during write operations.
The device is available in 90-pin SSOP and 84-ball FBGA packages. Key features include a sector erase architecture allowing individual sectors to be erased without affecting others, embedded algorithms for programming and erasing, and compatibility with JEDEC-standard commands.
Fujitsu BE-70 specifications
| Memory Capacity | 32 M-bit (2 M x 16 or 1 M x 32) |
|---|---|
| Operating Voltage | 3.0 V only |
| Max Random Access Time (70ns) | 70 ns |
| Min Program/Erase Cycles | 100,000 cycles |
| Package Types | 90-pin SSOP and 84-ball FBGA |
Source: FUJITSU SEMICONDUCTOR MBM29PL3200TE/BE70/90 Datasheet
All Fujitsu BE-70 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does this flash memory require high voltage for programming?
No, the device is designed to be programmed using a standard 3.0 V supply without requiring 12.0 V or 5.0 V.
Can individual sectors be erased independently?
Yes, the sector erase architecture allows each sector to be erased and reprogrammed without affecting other sectors.
What is the maximum access time of the MBM29LV160TE/BE?
The device offers maximum address access times of 70 ns, 90 ns or 120 ns depending on the version.
How many program/erase cycles can the flash memory endure?
It is rated for a minimum of 1,000,000 program/erase cycles.
What is the maximum access time for the MBM29DL16XTE/BE devices?
The devices are available with maximum address access times of 70 ns, 90 ns, or 120 ns depending on the part.
From: Fujitsu MBM29DL16XTE/BE-70/90/12 Flash Memory Datasheet
How many program/erase cycles can the flash memory endure?
Each device is rated for a minimum of 100 000 program/erase cycles.
From: Fujitsu MBM29DL16XTE/BE-70/90/12 Flash Memory Datasheet
