Key facts
- Brand
- Fujitsu
- Model
- FR60LITE
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-09
Start here

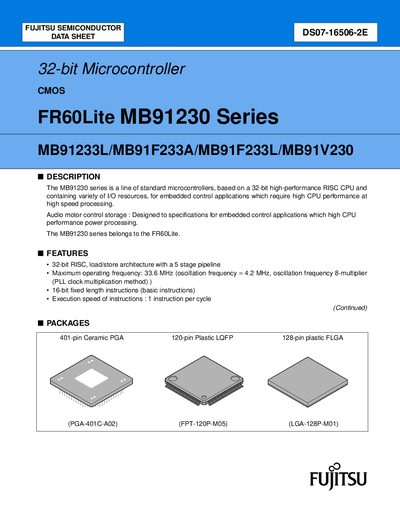

FUJITSU FR60Lite MB91230 Series Manual
User Manual 66 pages · 888 KB · EN
The MB91230 series is a line of 32‑bit RISC microcontrollers offering high‑speed processing and a wide range of I/O resources for embedded control applications. The manual provides detailed descriptions of the CPU architecture, built‑in peripherals, and package options.
Key sections include a feature overview, package options, pin assignment tables, and full pin‑function descriptions. Legal and support information is provided at the end of the document.
Fujitsu FR60LITE specifications
| Maximum operating frequency | 32 MHz |
|---|---|
| Built‑in RAM | 16 KB |
| Supply voltage | 3.5 V to 5.5 V |
| I/O ports | Maximum 120 ports |
| CAN controllers | 3 channels (max) |
| LIN‑UART channels | Up to 7 channels |
| Reload timers | 3 channels (16‑bit) |
| Package types | 401‑pin ceramic PGA, 100‑pin plastic LQFP |
All Fujitsu FR60LITE documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency of the MB91270/280 series?
The microcontroller can run at up to 32 MHz.
How much built‑in RAM does the MB91270/280 series provide?
It includes 16 KB of built‑in RAM for data.
