Key facts
- Brand
- Fujitsu
- Model
- BX620
- Documents
- 2
- Languages
- EN
- Last added
- 2012-02-15
Start here

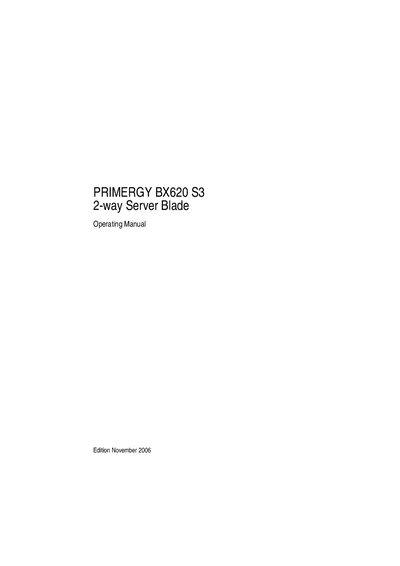

Fujitsu Siemens PRIMERGY BX620 S3 2-way Server Blade Operating Manual
This operating manual explains how to install the PRIMERGY BX620 S3 server blade in the BX600 S2 basic unit, start it up, and operate it. It is intended for personnel responsible for hardware installation and system administration, and it references related documentation such as the BX600 S2 Basic Unit manual.
The manual covers hardware specifications, including supported Intel Xeon DC dual‑core processors, memory configuration, and hard‑disk options, as well as BIOS setup, hot‑plug components, and troubleshooting procedures.
Fujitsu PRIMERGY BX620 specifications
| Processor architecture | Intel‑based |
|---|---|
| Processor type | dual‑core processors |
| Memory type | Fully Buffered DIMM (FBD) 533‑MHz |
| Optional FC I/O module | 2‑Gbit/s |
| Optional Ethernet I/O module | 1‑Gbit/s |
| SATA storage module variants | 1 variant |
| SAS storage module variants | 4 variants (SAS, SAS/RAID, SAS/PCI‑X, SAS/PCIe) |
| Supported hard disks | 2.5‑inch SAS or SATA |
All Fujitsu PRIMERGY BX620 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What processors can be added to the BX620 S3 server blade?
Only processors of the same type and clock frequency as the existing one may be installed as a second processor.
Can storage modules be replaced while the server blade is running?
No, storage modules cannot be replaced while the system is running; the blade must be switched off.
How many hard‑disk modules can be installed in the BX620 S3?
The BX620 S3 server blade can accommodate up to two 2.5‑inch hard‑disk modules.
From: Fujitsu Siemens PRIMERGY BX620 S3 2-way Server Blade Operating Manual
What type of processors are supported by the BX620 S3?
It supports Intel Xeon DC dual‑core processors, including Dempsey, Woodcrest, and Clovertown variants.
From: Fujitsu Siemens PRIMERGY BX620 S3 2-way Server Blade Operating Manual
