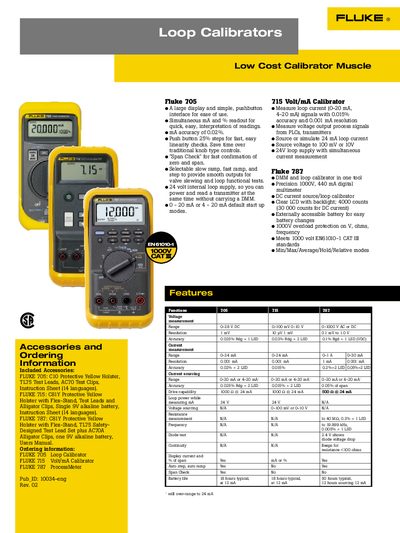

This table lists the features and specifications of the Fluke 705, 715 and 787 products.
The Fluke 705, 715, and 787 loop calibrators are compact instruments that combine voltage and current measurement with loop sourcing capabilities. They feature large displays, push‑button interfaces, and selectable ramp or step outputs for valve slewing and loop functional tests. Accuracy ranges from 0.015% to 0.025% with resolutions as fine as 0.001 mA.
Each model ships with specific accessories such as protective holsters, test leads, and alligator clips, and includes an instruction sheet in 14 languages. Ordering information for the three calibrators is provided, along with a Pub_ID reference for easy reference.
| Voltage measurement range | 0‑28 VDC, 0‑100 mV, 0‑10 V, 0‑1000 V AC/DC |
|---|---|
| Voltage measurement accuracy | 0.025% + 1 LSD |
| Current measurement accuracy | 0.02% + 2 LSD |
| Current sourcing range | 0‑20 mA or 4‑20 mA |
It includes a C10 Protective Yellow Holster, TL75 Test Leads, AC70 Test Clips, and an instruction sheet in 14 languages.
The Fluke 715 offers a voltage measurement accuracy of 0.025% plus 1 least significant digit.
