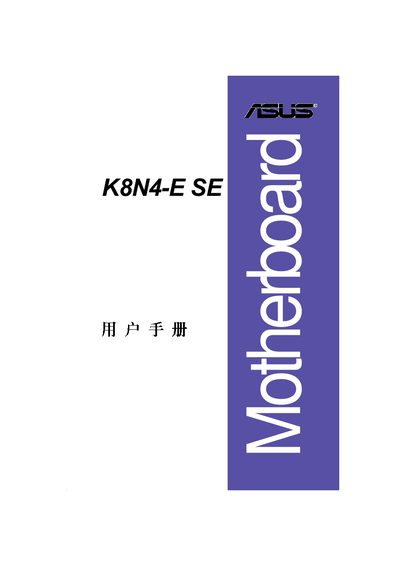

ASUS K8N4-E SE Motherboard User Manual

This document is a manual for the K8N4-E SE ii C2284 motherboard. The motherboard features a Socket 754 CPU socket, support for DDR memory, and SATA hard drive compatibility. It also includes USB, audio, and network interfaces.

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: Japanese
Pages: 90
File format: PDF
File size: 2.3 MB
Published: 06 April, 2012
Updated: 28 September, 2023
Models: K8N4-E, SK8N
MD5 checksum: 0400C9E48BE67386F1A9EB8BFAF9A4B4
PDF: ASUS K8N4-E SE Motherboard User Manual PDF

About this manual

This manual covers safety precautions, installation procedures, and hardware layout for the ASUS K8N4-E SE motherboard. It includes detailed instructions on handling the board, connecting peripherals, and avoiding static discharge.

The document also explains BIOS setup, jumper settings, and provides reference tables for component specifications. Additional sections address troubleshooting and maintenance to ensure reliable operation of the motherboard. This manual is written in Japanese.

What's inside

Safety Information
Installation Guide
BIOS Setup
Hardware Overview
Jumper Settings
Peripheral Connections
Troubleshooting

Specifications

Jumper Mode	Jumper Free (Default)
BIOS Utility	EZ Flash

Frequently asked questions

How do I access and configure the BIOS on the K8N4-E SE motherboard?

Press the DEL key during boot to enter the BIOS setup, then adjust settings as described in the BIOS chapter.
