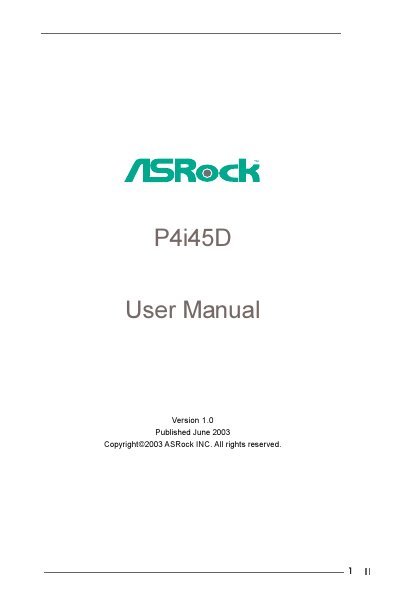

ASRock P4i45D Motherboard User Manual
This manual introduces the ASRock P4i45D ATX motherboard, covering its package contents, technical specifications, and layout. It is intended for DIY builders and advanced users who need detailed guidance on installing components and configuring the system.
The document includes step‑by‑step installation instructions, BIOS configuration menus, software support details, and an appendix with advanced BIOS options. Safety precautions, hardware monitoring features, and power‑management settings are also described. This manual is written in Chinese.
ASRock P4I45D specifications
| Form factor | ATX (12" x 9.6", 30.5 x 24.4 cm) |
|---|---|
| CPU socket | Socket 478 for Intel Pentium 4 / Celeron |
| North Bridge chipset | Intel 845D |
| South Bridge chipset | Intel ICH2 |
| Clock generator | 100 MHz – 200 MHz |
| Memory (DDR) | 2 slots, PC1600/PC2100, max 2 GB |
| Memory (SDR) | 2 slots, PC100/PC133, max 2 GB |
| IDE ports | 2 ATA100 / Ultra DMA Mode 5 ports, up to 4 IDE devices |
| Floppy port | Supports floppy disk drive |
| Audio | 5.1‑channel AC’97 |
| LAN | 10/100 Mbps Ethernet, Wake‑On‑LAN support |
| BIOS | AMI legal BIOS |
| Supported OS | Windows 98 SE / ME / 2000 / XP |
Source: ASRock P4I45D User Manual
All ASRock P4I45D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the ASRock P4I45D motherboard use?
It uses a Socket 478 for Intel Pentium 4 or Celeron processors.
How many PCI slots are available on the P4I45D board?
The board provides five PCI slots.
What CPU socket does the ASRock P4i45D motherboard use?
It uses a Socket 478 designed for Intel Pentium 4 and Celeron processors.
Can a 3.3 V AGP card be used in the AGP slot?
No. Using a 3.3 V AGP card may cause permanent damage to the motherboard.
What CPU socket does the ASRock P4I45D motherboard use?
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron processors.
How many PCI slots are provided on the P4I45D motherboard?
The board includes five PCI expansion slots.
