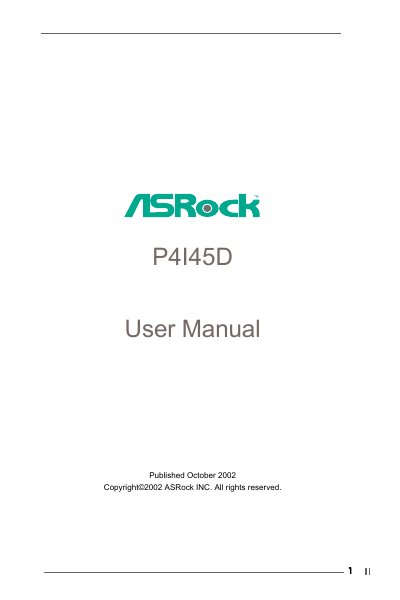

This manual introduces the functions and usage methods of the ASRock P4I45D motherboard.
This manual introduces the ASRock P4I45D ATX motherboard, its package contents, layout, and key features. It also includes safety notices and warranty information.
The document covers step‑by‑step installation of the CPU, memory, expansion cards, and peripherals, detailed BIOS configuration options, software support, and a comprehensive specifications table for the board. This manual is written in Chinese.
| Form factor | ATX (12" x 9.6") |
|---|---|
| CPU socket | Socket 478 for Intel Pentium 4 / Celeron |
| IDE ports | 2 IDE connectors, ATA100 Ultra DMA5, up to 4 IDE devices |
| Audio | 5.1‑channel AC’97 audio |
| LAN | 10/100 Mbps Ethernet with Wake‑On‑LAN |
| USB ports | 2 USB 2.0 ports, 2 USB 1.1 ports, USB 2.0 header for two extra ports |
| PCI slots | 5 PCI slots |
| AGP slot | 1 AGP slot, supports 1.5 V, 4X/2X/1X |
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron processors.
The board includes five PCI expansion slots.
There are two USB 2.0 ports, two USB 1.1 ports, and a USB 2.0 header for two additional ports.
