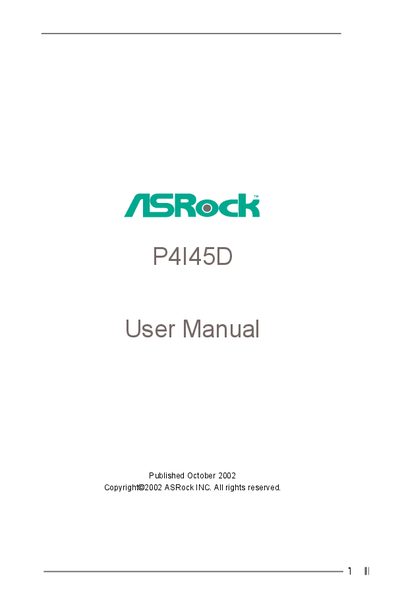

ASRock P4I45D User Manual, introduce the features and characteristics of P4I45D
This manual introduces the ASRock P4I45D ATX motherboard, detailing its package contents, hardware specifications, and layout. It guides users through safe installation, CPU and memory mounting, and connector connections.
Later sections cover BIOS configuration, software support, and troubleshooting tips, helping both beginners and advanced users configure the system for optimal performance.
| Form factor | ATX (12" x 9.6", 30.5 x 24.4 cm) |
|---|---|
| CPU socket | Socket 478 for Intel Pentium 4 / Celeron |
| North Bridge chipset | Intel 845D |
| South Bridge chipset | Intel ICH2 |
| Clock generator | 100 MHz – 200 MHz |
| Memory (DDR) | 2 slots, PC1600/PC2100, max 2 GB |
| Memory (SDR) | 2 slots, PC100/PC133, max 2 GB |
| IDE ports | 2 ATA100 / Ultra DMA Mode 5 ports, up to 4 IDE devices |
| Floppy port | Supports floppy disk drive |
| Audio | 5.1‑channel AC’97 |
| LAN | 10/100 Mbps Ethernet, Wake‑On‑LAN support |
| BIOS | AMI legal BIOS |
| Supported OS | Windows 98 SE / ME / 2000 / XP |
It uses a Socket 478 for Intel Pentium 4 or Celeron processors.
The board provides five PCI slots.
Two DDR slots support up to 2 GB total (PC1600/PC2100).
It uses an AMI legal BIOS.
