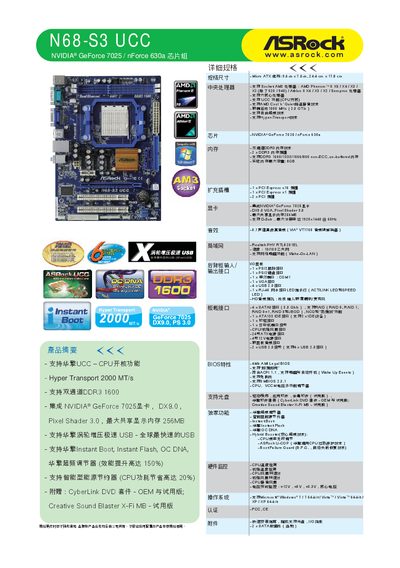

The ASRock N68‑S3 UCC motherboard specification manual details supported CPUs, memory, interfaces, and unique ASRock features.
This manual provides a complete overview of the ASRock N68‑S3 UCC motherboard, including its supported AMD AM3 processors, dual‑channel DDR3 memory architecture, and the integrated NVIDIA GeForce 7025 / nForce 630a chipset with shared graphics memory. It also lists all I/O connectors, expansion slots, and networking capabilities.
In addition to hardware specifications, the document explains ASRock‑specific technologies such as UCC CPU core unlocking, OC DNA overclock profile sharing, Instant Flash BIOS updating, and Instant Boot rapid startup. Step‑by‑step BIOS configuration instructions are included for enabling these features. This manual is written in Chinese.
| CPU Socket | Socket AM3 |
|---|---|
| Maximum Memory Capacity | 8 GB |
| Memory Slots | 2 x DDR3 slots |
| Supported Memory Types | DDR3 1600/1333/1066/800 non‑ECC, un‑buffered |
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
| Integrated Graphics | NVIDIA GeForce 7025, DX9.0, Pixel Shader 3.0, 256 MB shared memory |
| USB Ports | 4 x USB 2.0 |
| SATA Interfaces | 4 x SATAII (3.0 Gb/s) with RAID 0/1/0+1/5/JBOD |
| PCI Express Slots | 1 x PCI Express x16, 1 x PCI Express x1 |
| Network | Realtek PHY RTL8201EL, 10/100 Ethernet |
Enter the BIOS by pressing F2 or DEL, set “ASRock UCC” to Enabled, then press F10 to save and exit.
OC DNA lets you save BIOS overclock settings as a file that can be shared with other users of the same motherboard and BIOS version, and later loaded to apply the same settings.
