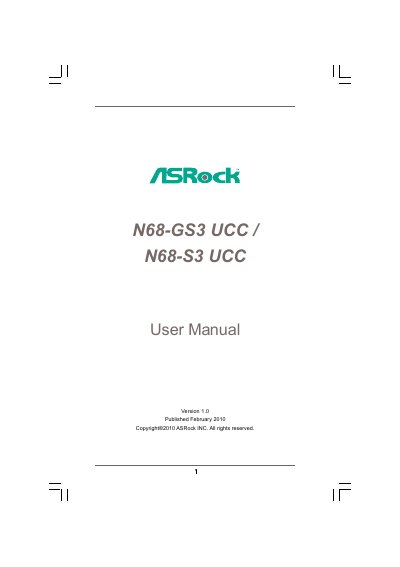

N68-GS3 UCC / N68-S3 UCC User Manual, introduces the features and characteristics of the product.
This manual provides step‑by‑step instructions for installing the ASRock N68‑GS3 UCC / N68‑S3 UCC motherboard, including CPU, memory, expansion cards and storage devices. It also details BIOS configuration, over‑clocking features, and software support via the included support CD.
Additional sections cover hardware health monitoring, security settings, and troubleshooting tips, with reference tables for specifications and connector layouts to help users configure the system correctly.
| Form Factor | Micro ATX 9.6" x 7.0" |
|---|---|
| CPU Support | AMD AM3 processors (Phenom II, Athlon II, Sempron) |
| Memory | 2 DDR3 DIMM slots, up to 8 GB, DDR3‑1600/1333/1066/800 |
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
| Integrated Graphics | NVIDIA GeForce 7025, DX9.0, up to 256 MB shared memory |
| LAN | Realtek Giga PHY RTL8211CL (10/100/1000 Mb/s) or RTL8201EL (10/100 Mb/s) |
The board supports AM3 processors including AMD Phenom II X4/X3/X2 (except 920/940), Athlon II X4/X3/X2 and Sempron CPUs.
The board features an integrated NVIDIA GeForce 7025 graphics processor with DirectX 9.0, Pixel Shader 3.0 and up to 256 MB of shared memory.
UCC allows the BIOS to unlock hidden CPU cores, turning a dual‑core or triple‑core AMD CPU into a quad‑core configuration for higher performance.
