Key facts
- Brand
- ASRock
- Model
- N68-GS3
- Category
- Motherboard
- Industry
- Computers
- Documents
- 10
- Languages
- EN · ZH
- Last added
- 2012-05-04
Start here

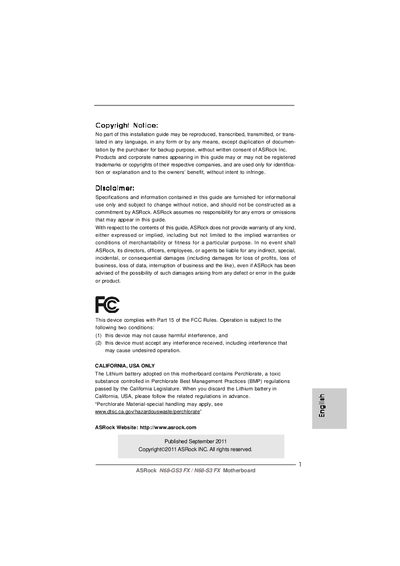

ASRock N68-GS3 FX / N68-S3 FX Motherboard User Manual
This manual introduces the ASRock N68‑GS3 FX and N68‑S3 FX Micro‑ATX motherboards, covering safety notices, layout diagrams, and component descriptions.
It details the supported CPUs, memory configurations, chipset, integrated graphics, audio, LAN, storage interfaces, BIOS features, and over‑clocking utilities, providing step‑by‑step installation and configuration guidance.
ASRock N68-GS3 specifications
| CPU socket | Socket AM3 (AMD Phenom II X6/X4/X3/X2, Athlon II, Sempron) |
|---|---|
| Memory slots | 2 DDR3 DIMM slots |
| Maximum memory | 8 GB |
| Integrated graphics | NVIDIA GeForce 7025 |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| Form factor | Micro ATX (9.6" x 7.0") |
| BIOS | 4 Mb AMI Legal BIOS |
Source: ASRock N68-GS3 UCC User Manual
All ASRock N68-GS3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- ASRock N68-GS3 UCC User Manual 2 p
- ASRock N68-GS3 UCC / N68-S3 UCC Motherboard User Manual 117 p
- ASRock N68-GS3 UCC / N68-S3 UCC Motherboard Owner's Manual 10 p
- ASRock N68-GS3 UCC / N68-S3 UCC Motherboard User Manual 53 p
- ASRock N68-GS3 / N68-S3 Motherboard User Manual 115 p
- ASRock N68-GS3/N68-S3 User Manual 53 p
- ASRock N68-GS3 FX / N68-S3 FX Motherboard User Manual 154 p
- ASRock N68-GS3 FX / N68-S3 FX Motherboard User Manual 11 p
- ASRock N68-GS3 FX / N68-S3 FX Motherboard User Manual 52 p
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the N68-GS3 UCC motherboard support?
It supports Socket AM3 processors, including AMD Phenom II X6, X4, X3, X2, Athlon II, and Sempron models.
What is the maximum system memory capacity?
The motherboard can handle up to 8 GB of DDR3 memory.
How many SATA ports are provided on the motherboard?
The motherboard includes four SATA ports: SATAII_1, SATAII_2, SATAII_3, and SATAII_4.
From: ASRock N68-GS3 UCC / N68-S3 UCC Motherboard Owner's Manual
What are the model numbers of this ASRock motherboard?
The model numbers are N68-GS3 UCC and N68-S3 UCC.
From: ASRock N68-GS3 UCC / N68-S3 UCC Motherboard Owner's Manual
Which AMD processors are supported by the N68‑GS3 UCC / N68‑S3 UCC motherboard?
The board supports AM3 processors including AMD Phenom II X4/X3/X2 (except 920/940), Athlon II X4/X3/X2 and Sempron CPUs.
From: ASRock N68-GS3 UCC / N68-S3 UCC Motherboard User Manual
What integrated graphics are included?
The board features an integrated NVIDIA GeForce 7025 graphics processor with DirectX 9.0, Pixel Shader 3.0 and up to 256 MB of shared memory.
From: ASRock N68-GS3 UCC / N68-S3 UCC Motherboard User Manual
