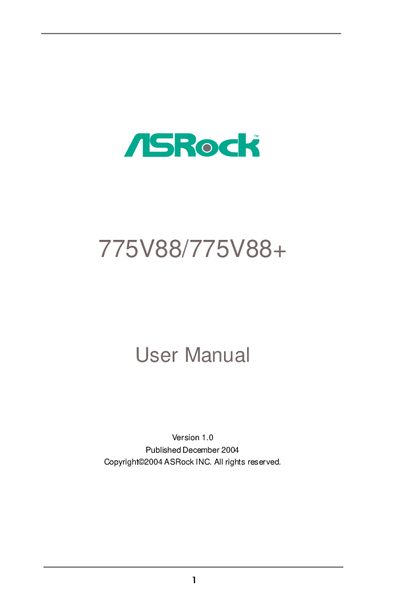

ASRock 775V88/775V88+ User Manual
This manual introduces the ASRock 775V88/775V88+ motherboard, an ATX‑form factor board featuring a 778‑pin LGA socket, VIA PT880 north bridge and VIA VT8237 south bridge, and support for Intel Pentium 4 and Celeron CPUs. It includes package contents, detailed specifications, and a layout diagram to help users understand the board’s features.
The guide covers hardware installation (CPU, memory, storage, expansion slots), BIOS Setup Utility navigation, and software support via the included Support CD. It also provides information on supported Windows operating systems, driver installation, and a live demo program for LGA 775 CPU installation.
ASRock 775V88 specifications
| Form Factor | ATX (12.0‑in x 9.2‑in) |
|---|---|
| CPU Socket | 778‑Pin LGA |
| Supported CPUs | Intel Pentium 4 / Celeron |
| North Bridge Chipset | VIA PT880, FSB @ 800/533 MHz |
| South Bridge Chipset | VIA VT8237, USB 2.0, ATA 133, SATA 1.5 Gb/s |
| Memory Slots | 4 DDR DIMM slots (DDR1‑DDR4) |
| Maximum Memory | Up to 3.5 GB |
| SATA Connectors | 2 connectors, 1.5 Gb/s |
| USB 2.0 Ports | 8 ports (6 rear, 2 via header) |
| LAN | 10/100 Mbps Ethernet, Wake‑On‑LAN |
All ASRock 775V88 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many SATA connectors does the motherboard have?
The board provides two SATA connectors supporting up to 1.5 Gb/s data transfer rates.
Which Windows operating systems are supported?
It supports Microsoft Windows 98 SE, ME, 2000, and XP.
How many USB 2.0 ports does the motherboard provide?
The motherboard includes eight USB 2.0 ports (six on the rear panel and two via an on‑board header).
Which Windows operating systems are supported by this motherboard?
It supports Microsoft Windows 98 SE, Windows ME, Windows 2000, and Windows XP.
