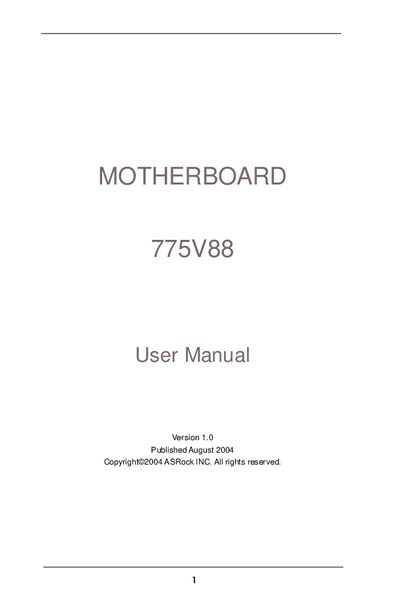

ASRock 775V88 Motherboard User Manual

This document is the user manual for the 775V88 motherboard by ASRock INC. It provides specifications and information about the motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 38
File format: PDF
File size: 788 KB
Published: 15 March, 2012
Updated: 29 September, 2023
Model: 775V88
MD5 checksum: 6A3AB3B2034372C809BDF29C9849603D
PDF: ASRock 775V88 Motherboard User Manual PDF

About this manual

This manual introduces the ASRock 775V88 ATX motherboard, lists the package contents, and details the hardware layout, including the CPU socket, memory slots, and I/O connectors. It also explains the ASRock I/O Plus™ features and provides safety precautions for handling components.

The document guides users through installation procedures, BIOS configuration, and software support, including driver installation from the support CD and supported Windows operating systems. It includes troubleshooting notes and warranty information.

What's inside

Introduction
Specifications
Motherboard Layout
Installation
BIOS Setup Utility
Software Support
Safety Precautions
I/O Connectors
Support CD

Specifications

Form Factor	ATX (12.0‑in x 9.2‑in)
CPU Socket	775‑Pin LGA
North Bridge Chipset	VIA PT880
South Bridge Chipset	VIA VT8237
Memory Slots	4 DDR DIMM slots
SATA Connectors	2 SATA ports (1.5 Gb/s)
USB 2.0 Ports	8 ports (6 rear, 2 via header)
LAN	10/100 Mbps Ethernet
Audio	5.1‑channel AC’97

Frequently asked questions

How many USB 2.0 ports does the motherboard provide?

The motherboard includes eight USB 2.0 ports (six on the rear panel and two via an on‑board header).

Which Windows operating systems are supported by this motherboard?

It supports Microsoft Windows 98 SE, Windows ME, Windows 2000, and Windows XP.

What safety precaution should be taken before handling motherboard components?

Unplug the power cord from the wall socket before touching any component.

Download PDF (788 KB)
