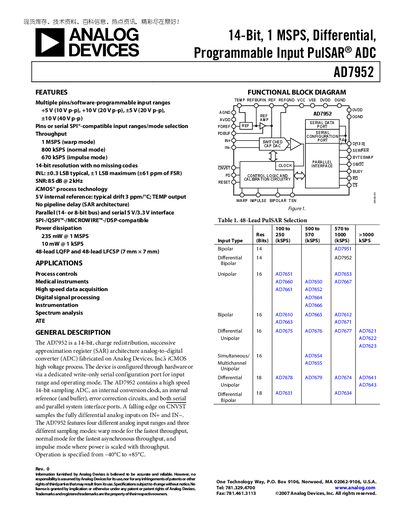

AD7952 is a 14-bit, 1 MSPS, differential, programmable input PulSAR® ADC from Analog Devices.
The AD7952 is a 14‑bit successive‑approximation register (SAR) analog‑to‑digital converter fabricated on Analog Devices' iCMOS high‑voltage process. It offers multiple programmable input voltage ranges, selectable conversion modes (warp, normal, impulse), and both parallel and serial interfaces.
The device operates from –40 °C to +85 °C, consumes 235 mW at 1 MSPS, and is available in 48‑lead LQFP and LFCSP packages. Detailed specifications, timing diagrams, pin functions, and layout guidelines are provided for designers.
| Resolution | 14 bits |
|---|---|
| Input Range (example) | +5 V (10 V p‑p) |
