This data sheet provides Am29F010 1 Megabit (128 K x 8-Bit) CMOS 5.0 Volt-only, Uniform Sector Flash Memory specifications.

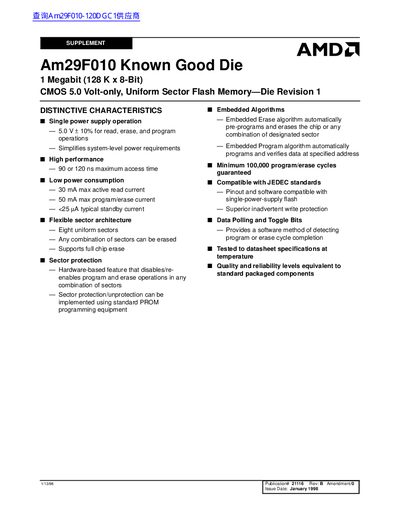

The Am29F010 Known Good Die is a 1 Mbit, 5.0 V‑only CMOS flash memory die offered by AMD. This handbook describes its distinctive characteristics, electrical performance, and physical dimensions, and explains how the die is tested and qualified.
Key sections include general description, product selector guide, pad layout, ordering information, test flow, physical specifications, handling instructions, and the terms and conditions of sale. The document is intended for designers, manufacturers, and distributors who need detailed technical data and proper handling procedures for the KGD product.
| Memory capacity | 1 Megabit (128 K × 8‑Bit) |
|---|---|
| Supply voltage | 5.0 V (single‑supply) |
| Maximum access time | 90 ns (90‑ns option) or 120 ns (120‑ns option) |
| Active read current | 30 mA max |
| Program/erase current | 50 mA max |
| Standby current | < 25 µA typical |
| Uniform sectors | Eight sectors, 16 KB each |
| Operating temperature range | Commercial 0 °C to +70 °C; Industrial –40 °C to +85 °C; Extended –55 °C to +125 °C |
| Die dimensions | 174 mil × 189 mil (4.42 mm × 4.80 mm) |
The device offers a 90 ns access time for the 90‑ns speed option and 120 ns for the 120‑ns option.
It is organized into eight uniform sectors, each 16 KB in size.
Commercial 0 °C to +70 °C, Industrial –40 °C to +85 °C, and Extended –55 °C to +125 °C.
