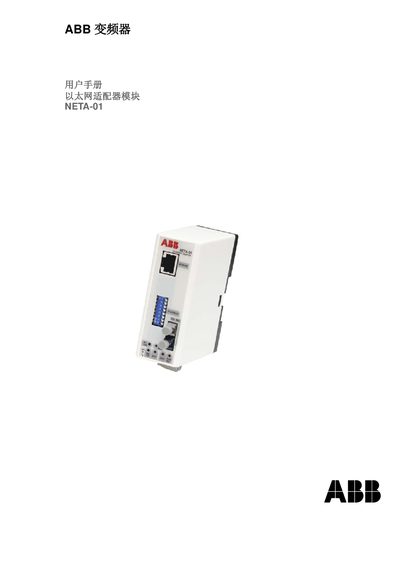

This manual introduces the installation and operation instructions for the NETA-01 network adapter module.
This manual covers the NETA-01 Ethernet adapter module used with ABB drives. It is intended for personnel responsible for installing, commissioning, and operating the module, and includes safety guidelines such as ensuring qualified personnel, proper grounding, and capacitor discharge before work.
The document details mechanical and electrical installation, network connection, IP address setup, inverter configuration, the web‑based user interface, supported communication protocols, backup and restore procedures, and provides technical data, environmental limits, and PC configuration requirements. This manual is written in Chinese.
| Compatible devices | ABB ACS800, ACS600, ACX400, DCS800, DCS600, ACS6000, ACS1000, ACS5000 |
|---|---|
| Loop size | 2 workstations |
| Medium | Fiber optic, core diameter 1 mm |
| Attenuation | 0.31 dB/m |
| Maximum distance between workstations | 10 m |
| Transmission speed | 4 Mbit/s |
| Protocol | Distributed Drive Communication System (DDCS) |
| Operating temperature range | -20 °C to +70 °C |
| Storage temperature range | -55 °C to +85 °C |
A DDCS loop can connect up to two workstations.
The maximum distance between workstations is 10 meters.
