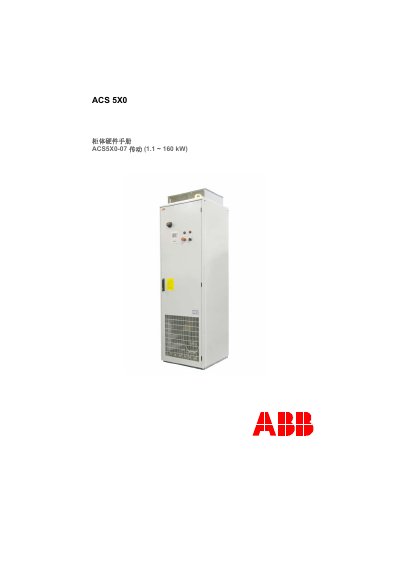

ABB ACS5X0-07 Hardware Manual

The ABB ACS5X0-07 hardware manual provides safety guidelines, installation, wiring, maintenance, technical data and energy‑braking information for the drive.

Brand: ABB
Document type: Service Manual
Language: Chinese
Pages: 64
File format: PDF
File size: 2.9 MB
Published: 16 December, 2011
Updated: 30 September, 2026
Model: ACS5X0-07
MD5 checksum: 3B7FD0BB46DBF8EBA6375805033204B8
PDF: ABB ACS5X0-07 Hardware Manual PDF

About this manual

This manual covers the safe installation, commissioning and maintenance of the ABB ACS5X0-07 drive (1.1 ~ 160 kW). It includes safety notices, mechanical and electrical installation design, grounding, and detailed procedures for startup and troubleshooting.

Key sections provide technical data, dimension drawings, energy‑braking configuration, and recommended tools. The document is intended for qualified electrical engineers and technicians who work with the drive in industrial applications. This manual is written in Chinese.

What's inside

Safety Guidelines
Mechanical Installation
Electrical Installation Design
Installation and Startup Checklist
Maintenance
Technical Data
Energy Braking
Dimensions and Layout
Grounding
Optional Equipment

Specifications

Power rating	1.1 – 160 kW
Input voltage	380 – 480 V AC (three‑phase)
Maximum brake resistor cable length	10 m

Frequently asked questions

How long can the brake resistor cable be?

The brake resistor cable may be up to 10 meters long.

What is the power rating range of the ACS5X0-07 drive?

The drive is rated for power from 1.1 kW up to 160 kW.
