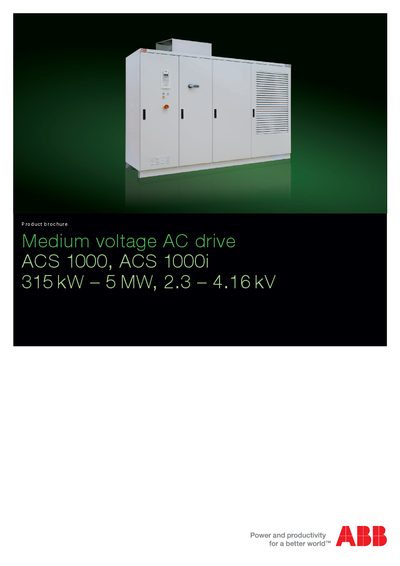

The ACS 1000 family of drives, one of the most successful variable speed drives in its class, provides simple and reliable power control.
The ACS 1000 family offers medium‑voltage drives for 315 kW to 5 MW induction motors at 2.3 kV‑4.16 kV, available in air‑cooled or water‑cooled versions. The drives can be supplied with a separate input transformer or as a fully integrated unit that includes the transformer and optional contactor.
Key features include an output sine filter that eliminates voltage stress on standard motors, a fuseless design for maintenance‑free circuit protection, and a Direct Torque Control (DTC) platform for high‑torque, precise speed control. The drives are retrofit‑ready, network‑friendly with 12‑ or 24‑pulse diode rectifiers, and support flexible system designs with optional integrated or separate input transformers.
| Air cooled voltage | 4.0 kV |
|---|---|
| Shaft power (air cooled) | 300 kW |
| Type code (air cooled) | ACS 1014-A1-A |
| Air cooled current | 400 A |
| Water cooled voltage | 4.0 kV |
| Water cooled shaft power | 1860 kW |
The ACS 1000 is available with air cooling or water cooling.
Yes, it is compatible with standard induction motors without derating.
Yes, the converter design does not require medium‑voltage power fuses.
