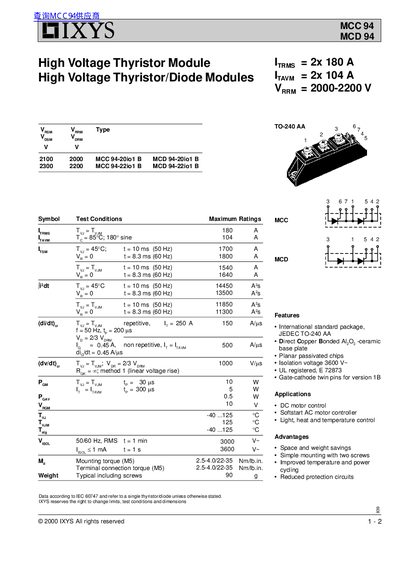

The IXYS MCC94 and MCD94 datasheet provides specifications, test conditions, dimensions and application information for high‑voltage thyristor modules.
The IXYS MCC94 and MCD94 are high‑voltage thyristor/diode modules packaged in a TO‑240 AA case. The datasheet lists their electrical ratings, test conditions, mechanical dimensions and typical mounting requirements. Features include a JEDEC‑standard package, direct copper‑bonded Al₂O₃ ceramic base, and twin gate‑cathode pins for easy connection.
Typical applications are DC motor control, soft‑start AC motor controllers and light/heat/temperature control circuits. Optional accessories such as keyed gate‑cathode twin plugs with 350 mm leads are also described.
| Isolation voltage | 3600 V |
|---|---|
| Gate trigger current (IG) | 0.45 A |
| Forward voltage (VGT) | 6 V |
| Thermal resistance RthJC (K/W) | 0.22 |
The isolation voltage is specified as 3600 V.
Keyed gate‑cathode twin plugs with 350 mm wire length (gate yellow, cathode red) are offered as optional accessories.
