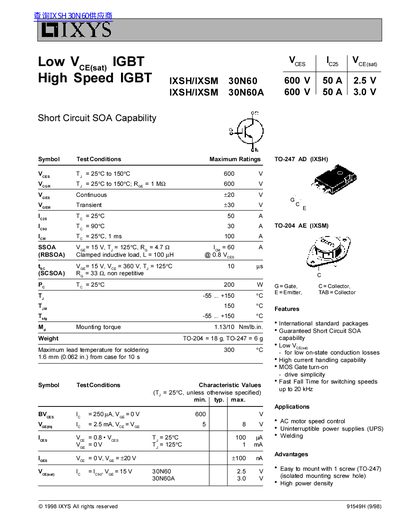

This document provides technical specifications for the IXYS IXSH/IXSM 30N60 and 30N60A High Speed IGBTs. It includes maximum ratings, electrical characteristic values, switching times, and thermal resistance data for both TO-247 and TO-204 packages.
The datasheet outlines guaranteed short circuit SOA capability and lists typical applications such as AC motor speed control, uninterruptible power supplies (UPS), and welding. It also provides mechanical outline drawings with dimensional tolerances in inches and millimeters.
| Continuous Collector Current (Ic) | 50 A at Tj = 25°C |
|---|---|
| Turn-off Time (td(off)) | 1500 ns typ. |
| Thermal Resistance (RthJC) | 0.25 K/W |
The device is suitable for AC motor speed control, uninterruptible power supplies (UPS), and welding.
The maximum lead temperature for soldering is 300 °C.
Yes, the IXSH/IXSM series includes guaranteed Short Circuit SOA capability.
