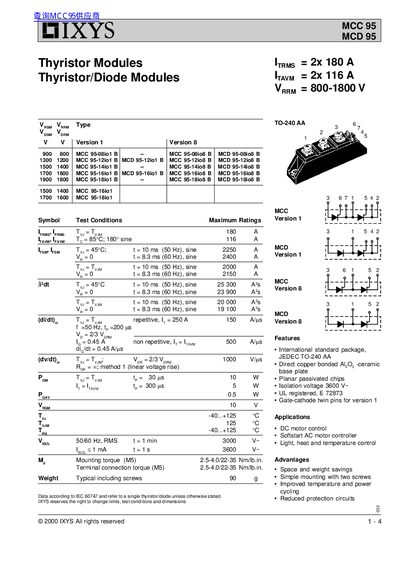

This document is the datasheet of MCC 95-08io1B from IXYS. It contains parameters such as maximum current, maximum voltage, maximum current stress and maximum voltage stress.
This document provides a technical overview of the IXYS MCC95 and MCD95 thyristor/diode modules. It details maximum ratings such as RMS current up to 180 A per module and voltage ratings ranging from 800 V to 1800 V.
| RMS Current (ITRMS) | 2 x 180 A |
|---|---|
| Average Current (ITAVM) | 2 x 116 A |
| Repetitive Peak Reverse Voltage (VRRM) | 800-1800 V |
| Package Type | JEDEC TO-240 AA |
| Base Plate Material | Direct copper bonded Al2O3 ceramic |
| Isolation Voltage (VISOL) | 3000 V~ (1 min) |
| Mounting Torque | 2.5-4.0 Nm (M5) |
| Thermal Resistance Junction-to-Case (RthJC) | 0.22 K/W |
They are used for DC motor control, softstart AC motor controllers, and light, heat, and temperature control.
The maximum allowable acceleration for these modules is 50 m/s².
