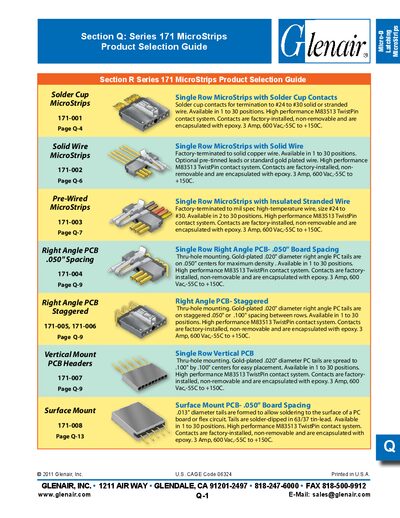

The guide provides specifications, ordering options, dimensions, and mounting details for Glenair Series 171 single‑row MicroStrip connectors.
The Series 171 MicroStrips are single‑row, high‑reliability board‑to‑wire and wire‑to‑wire connectors designed for rugged applications where moisture ingress is not a factor. They use Glenair’s TwistPin contact system and meet MIL‑DTL‑83513 requirements.
The guide covers four main connector families—solder‑cup, solid‑wire, pre‑wired (insulated), and various PCB‑mount styles (right‑angle, staggered, vertical, surface‑mount). For each family it lists contact ratings, material finishes, dimensional data, optional latches, guide pins, and mounting‑hole options, plus part‑numbering and ordering instructions.
| Current Rating | 3 Amps |
|---|---|
| Contact Resistance | 8 milliohms maximum |
| Dielectric Withstanding Voltage | 600 Vac |
| Insulation Resistance | 5000 megohms minimum |
| Operating Temperature | -55 °C to +150 °C |
| Shock Rating | 300 g |
| Vibration Rating | 37 g |
| Contact Material | Copper alloy, 50 µin gold plated |
| Latch Material | Stainless steel |
Each connector is rated for 3 Amps.
They are specified for –55 °C to +150 °C operation.
The dielectric withstanding voltage is 600 Vac.
The TwistPin contacts are factory‑installed, non‑removable and encapsulated with epoxy.
