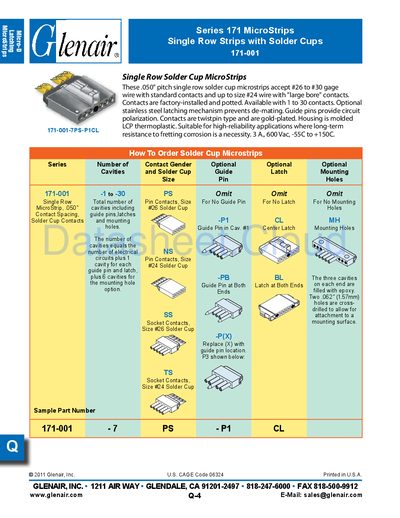

The Glenair 171-001 Solder Cup MicroStrips datasheet provides ordering options, dimensions, contact types, and specifications for high‑reliability applications.
The 171-001 Single Row Solder Cup MicroStrips are .050" pitch connectors that accept #26 to #30 gauge wire (up to #24 with large‑bore contacts). Contacts are twist‑pin type, gold‑plated, and housed in molded LCP thermoplastic, making them suitable for high‑reliability uses.
The document details how to order the strips, optional guide pins, latches, and mounting holes, as well as dimensional tables and electrical ratings such as 3 A, 600 Vac and a temperature range of –55 °C to +150 °C.
| Contact spacing | .050" pitch |
|---|---|
| Wire gauge range | #26 to #30 (up to #24 large‑bore) |
| Maximum voltage | 600 Vac |
| Operating temperature range | -55 °C to +150 °C |
| Housing material | LCP thermoplastic |
They accept #26 to #30 gauge wire, and up to #24 gauge with large‑bore contacts.
The strips operate from –55 °C to +150 °C.
The maximum voltage rating is 600 Vac.
Optional guide pins, latches, and mounting holes can be added.
