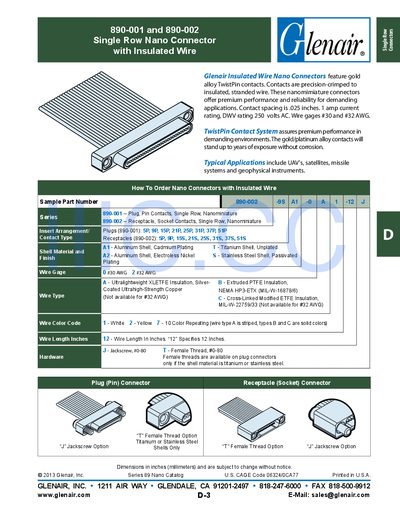

Glenair Series 89 Nano Connectors catalog with specifications, ordering options, and dimensional data.
The Glenair Series 89 Nano Connectors catalog provides detailed information on the single‑row, nanominiature connectors with insulated wire. It describes the gold‑alloy TwistPin contacts, contact spacing, current and voltage ratings, and the wire gauge options (#30 and #32 AWG) for demanding applications such as UAVs, satellites, and missile systems.
The document includes ordering instructions, available shell materials and finishes, wire types and colors, and a full dimensional table for each connector configuration (plug and receptacle) ranging from 5‑position to 51‑position versions.
| Contact spacing | .025 inches |
|---|---|
| Current rating | 1 A |
| Voltage rating | 250 V AC |
| Wire gauges | #30 and #32 AWG |
The contact spacing is .025 inches.
They are rated for 1 amp of current.
The connectors accept #30 AWG and #32 AWG insulated wire.
