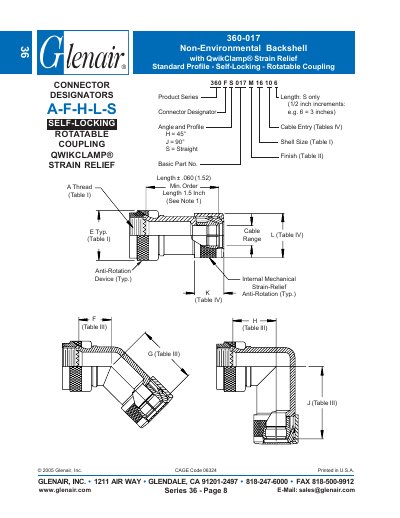

This is a specification sheet for 360-017 non-environmental backshell, including product model, length, thread, internal mechanical strain relief, anti-rotation, etc.
The 360-017 backshell is part of Glenair's Series 36 line and offers a non‑environmental enclosure with a QwikClamp® strain‑relief mechanism. It supports self‑locking and rotatable coupling configurations and is designed for a range of connector designators (A‑F‑H‑L‑S).\n\nKey specifications include precise length tolerance (± 0.060 in), multiple cable entry ranges, various shell sizes, and a selection of standard finishes such as Cadmium Plate Olive Drab, Anodize Black, Hard Coat Anodic, and Electroless Nickel.
| Model number | 360-017 |
|---|---|
| Series | Series 36 |
| Length tolerance | ± 0.060 in (1.52 mm) |
| Minimum order length | 1.5 in |
| Cable entry range (K max) | 0.530 in (13.5 mm) |
| Standard finish – Cadmium Plate | Olive Drab |
| Standard finish – Anodize | Black |
The minimum order length is 1.5 inches.
Available finishes include Cadmium Plate Olive Drab, Anodize Black, Hard Coat Anodic, and Electroless Nickel.
The K designation allows a maximum cable entry of 0.530 in (13.5 mm).
