The document provides detailed information on Glenair 400 series connectors, including models, sizes, specifications, etc.

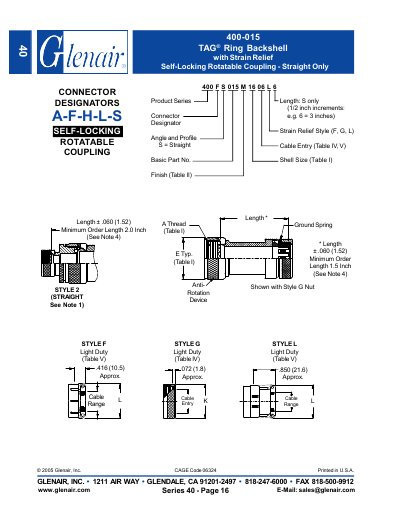

The Glenair 400-015 TAG® Ring Backshell is a straight‑only, self‑locking rotatable coupling with integrated strain‑relief. It is part of the Series 40 connector family and is designed for cable entry applications where a secure, rotatable connection is required.
The document provides dimensional data, strain‑relief styles, cable‑entry limits, and ordering information. Tables list maximum cable‑entry sizes, shell dimensions, and recommended lengths for various configurations. Consult the tables for exact sizing and compatibility details.
| Length tolerance | ± .060 (1.52) |
|---|---|
| Minimum order length | 1.5 Inch |
| Maximum cable range (L) | .968 (24.6) |
The minimum order length is 1.5 Inch.
The straight‑only version uses Style 2 (Straight).
