This document introduces the design and features of the Series 440 connector produced by Glenair. The connector is available in various angles and profiles for different applications. It features a rotatable coupling design for flexible connection requirements. Additionally, the connector offers different finishes and shell sizes to choose from. The document also describes the various components and options of the connector, such as shrink boots, polysulfide, and bands. The connector provides excellent EMI/RFI shielding performance.

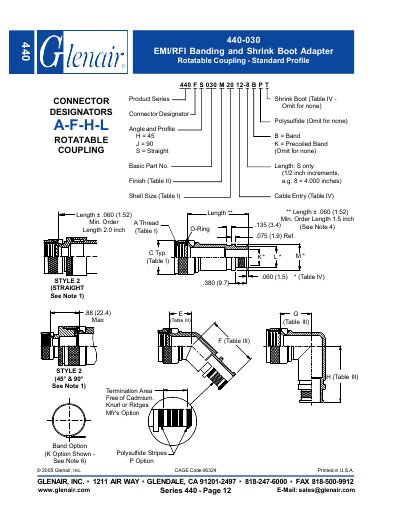

The Series 440 handbook describes the 440-030 EMI/RFI Banding and Shrink Boot Adapter, a rotatable coupling used for EMI/RFI protection. It lists connector designators, angle options (45°, 90°, straight) and available finish and band options.
Technical tables give elbow dimensions, shell sizes, cable entry dimensions, and material options such as polysulfide shrink boot. Ordering notes include length tolerances, metric dimensions in parentheses, and special instructions for stainless‑steel parts and O‑Ring availability.
| Length tolerance | ±0.060 in (1.52 mm) |
|---|---|
| Maximum shell size (H) | 0.639 in (16.2 mm) |
| Shrink boot material | Polysulfide |
| Stainless‑steel dimension increase | +0.187 in (4.7 mm) |
Metric dimensions in millimeters are shown in parentheses after the inch values.
No, the interface O‑Ring is not supplied with connector designator A.
The length tolerance is ±0.060 inches (1.52 mm).
