This file provides detailed information on the features and characteristics of the Sav-Con® Connector Savers MIL-DTL-83723 Series III，Threaded Coupling product, including product model, specifications, and applications.
The Sav-Con® Connector Savers are MIL‑DTL‑83723 Series III threaded coupling components designed for interfacial sealing (Class 1 & 2). They are supplied by Glenair and feature a range of thread classes and shell sizes for various connector applications.

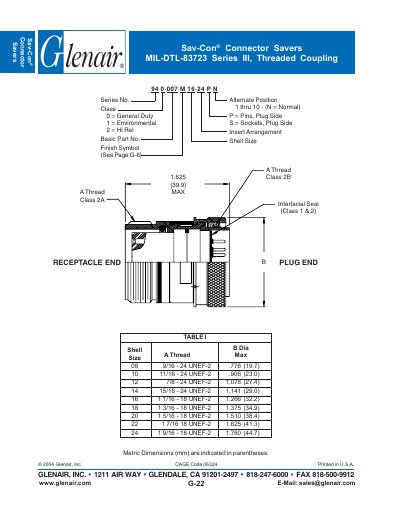

The datasheet lists metric dimensions, thread specifications (e.g., 9/16‑24 UNEF‑2, Class 2B), shell sizes from 08 to 24, and detailed insert arrangement tables showing normal and alternate keyway positions for up to ten insert positions.
| Thread Class | 2B |
|---|---|
| Thread Size | 9/16 - 24 UNEF-2 |
| Shell Size | 08 |
| Maximum Diameter | .776 mm (19.7 in) |
The receptacle end uses Thread Class 2B.
Shell sizes range from 08 up to 24, as listed in the datasheet.
