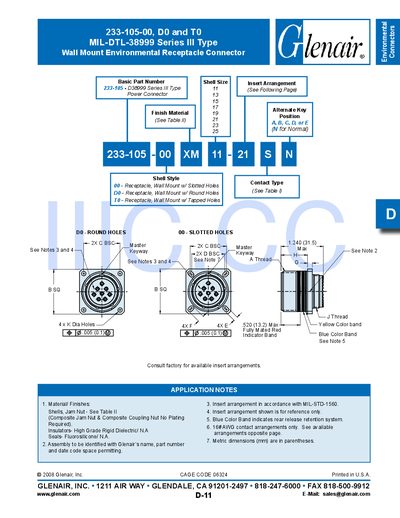

The Glenair D233-105-00 D0 and T0 MIL‑DTL‑38999 Series III wall‑mount environmental receptacle connector datasheet provides material finishes, shell sizes…
This document describes the Glenair D233-105-00 D0 and T0 MIL‑DTL‑38999 Series III wall‑mount environmental receptacle connector. It lists material and finish options, shell size ranges, contact arrangements and key dimensions for proper installation.
Tables include shell size codes, contact type codes, finish material options and metric dimensions. The information follows MIL‑STD‑1560 for insert arrangements and provides reference data for designers and installers.
| Shell size range | 11 to 25 |
|---|---|
| Contact size | 16# AWG only |
| Finish material (shells) | Aluminum Electroless Nickel |
| Blue color band meaning | Rear release retention system |
The shells use a composite jam nut and composite coupling nut with no plating required.
Only 16 AWG contact arrangements are available.
The blue color band indicates the rear release retention system.
Insert arrangements follow MIL‑STD‑1560 and are shown for reference only.
