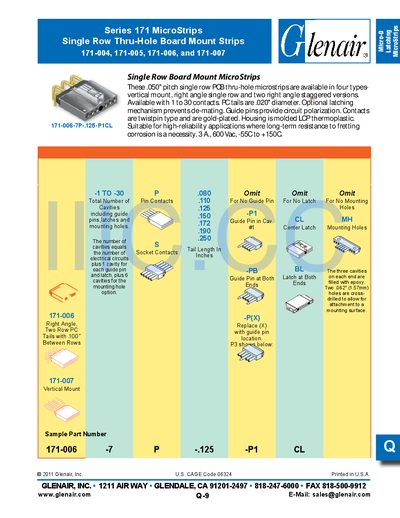

Technical data sheet for Glenair Q-9Series 171 single‑row board‑mount microstrips.
The Q-9Series 171 MicroStrips are single‑row, .050" pitch, through‑hole board‑mount connectors offered in vertical, right‑angle single row, and two right‑angle staggered versions. They feature gold‑plated twist‑pin contacts, a molded LCP thermoplastic housing, and optional latching mechanisms for high‑reliability applications.
The document provides ordering information, dimensional tables, and printed‑circuit‑board layout drawings for part numbers 171‑004 through 171‑007, including optional guide pins, latches, and mounting‑hole configurations.
| Pitch | .050" |
|---|---|
| Contact type | Gold‑plated twistpin |
| Housing material | Molded LCP thermoplastic |
| Temperature range | -55 °C to +150 °C |
| Current rating | 3 A |
| Voltage rating | 600 Vac |
| PC tail diameter | .020" |
| Optional latch | Prevents de‑mating |
| Guide pins | Provide circuit polarization |
| Mounting holes | Optional |
The pitch is .050 inches.
Optional latching mechanisms, guide pins, and mounting holes can be added.
The housing is molded LCP thermoplastic.
They are rated for 3 A, 600 Vac and operate from –55 °C to +150 °C.
