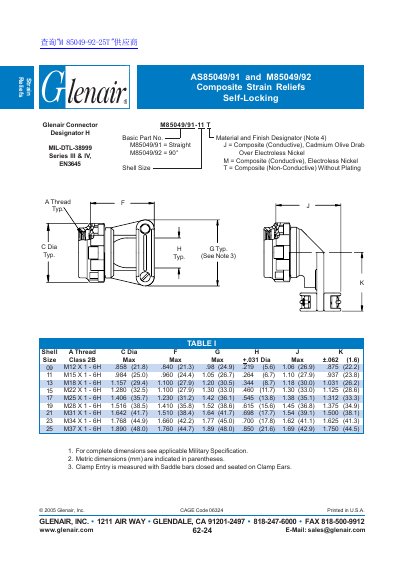

This datasheet provides the specifications for Glenair's composite strain reliefs, model AS85049/91 (straight) and M85049/92 (90°). The parts are designed for MIL‑DTL‑38999 Series III & IV connectors and are available in a range of shell sizes.
Key details include shell size dimensions, C‑diameter and G‑diameter limits, material and finish options (conductive composites J and M, non‑conductive composite T), thread class 2B, and standard M12 × 1‑6HM thread size. The document also lists basic part numbers and the corresponding configuration (straight or 90°).
| Shell Size range | 09 to 25 |
|---|---|
| Material J | Composite (Conductive), Cadmium Olive Drab over Electroless Nickel |
| Material M | Composite (Conductive), Electroless Nickel |
| Material T | Composite (Non‑Conductive), Without Plating |
| Thread Class | 2B |
| Thread size | M12 × 1‑6HM |
| Basic Part Numbers | M85049/91 = Straight, M85049/92 = 90° |
The straight version is part number M85049/91 and the 90° version is M85049/92.
Three material options are offered: J – composite conductive with cadmium olive drab over electroless nickel; M – composite conductive with electroless nickel; and T – composite non‑conductive without plating.
The thread class is 2B.
