Glenair 380-104 EMI/RFI Non-Environmental Backshell with Strain Relief Type F - Direct Coupling - Low Profile1

Provides detailed information on 38 series direct coupling connector products, including product models, specifications, dimensions, etc.

Brand: Glenair
Category: Other
Document type: Product Leaflet
Language: English
Pages: 2
File format: PDF
File size: 96 KB
Published: 03 May, 2012
Updated: 01 October, 2023
MD5 checksum: A08ECE8B26D561D2B8096353BC99C022
PDF: Glenair 380-104 EMI/RFI Non-Environmental Backshell with Strain Relief Type F - Direct Coupling - Low Profile1 PDF

About this manual

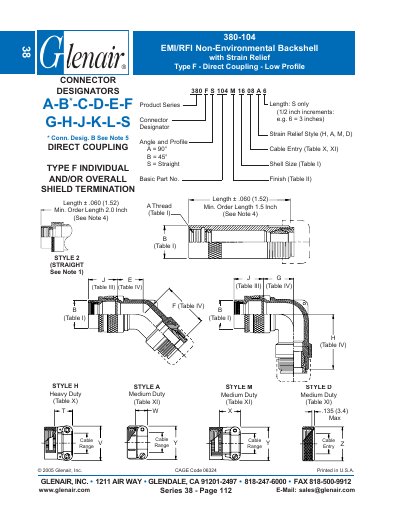

The 380-104 backshell is part of Glenair's Series 38 connector family and is designed for EMI/RFI protection in non‑environmental applications. It features a low‑profile, direct‑coupling design with a Type F strain‑relief style, offering multiple shell sizes and finish options.

Technical data include precise shell‑size dimensions, cable‑entry ranges, and standard finishes such as Cadmium Plate (Olive Drab) and Electroless Nickel. Detailed tables list maximum cable entry dimensions, elbow dimensions, and available strain‑relief styles (H, A, M, D).

What's inside

Connector Designators
Strain Relief Style
Cable Entry
Shell Size
Finish
Dimensions
Cable Range
Elbow Dimensions
Standard Finishes

Specifications

Shell Size options	08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 29, 32, 33, 36, 40
Strain Relief Styles	H, A, M, D
Maximum cable entry	0.780 in (19.8 mm)
Finish options	Cadmium Plate, Olive Drab; Electroless Nickel
Minimum order length	2.0 in
