This document introduces the design features and parameters of Glenair's Series 440 product line connectors. The connectors have different angle and profile options and are suitable for Tinel-Lock® ring terminations. The document also provides detailed information on different lengths and cable entry options.

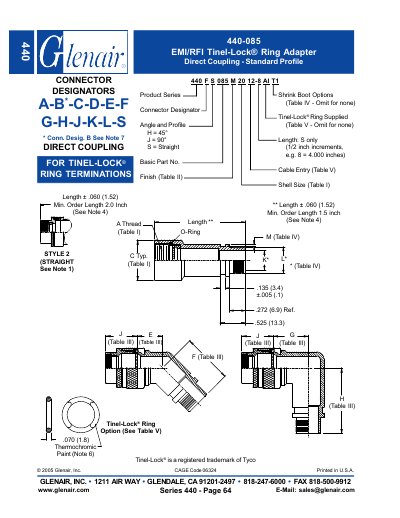

The 440‑085 EMI/RFI Tinel‑Lock® Ring Adapter is part of Glenair's Series 440 connector family. The sheet lists connector designators, angle profiles (H = 45°, J = 90°), shell sizes, and available finishes for Tinel‑Lock® ring terminations.
Additional tables detail shrink‑boot options (T1 and T2), cable‑entry sizes, and dimensional tolerances. Thermochromic paint on the rings indicates correct installation temperature, with red or blue spots identifying BI and CI ring types respectively.
| Angle Profile H | 45° |
|---|---|
| Minimum Order Length | 1.5 inch |
| Thermochromic Paint Indicator | Red spot for BI rings, blue spot for CI rings |
The paint changes color at the correct installation temperature; BI rings show a red spot and CI rings a blue spot.
Two options are offered: T1 (e.g., part 202K121‑25‑0) and T2 (e.g., part 202K121‑100‑0).
The minimum order length is 1.5 inch.
