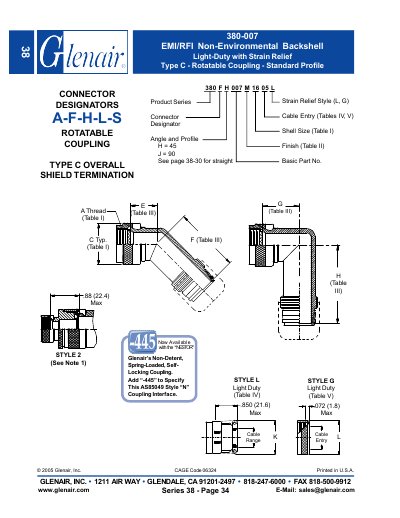

This page is part of the Series 38 380-007 EMI/RFI Non-Environmental Backshell Light-Duty with Strain Relief Type C - Rotatable Coupling - Standard Profile product manual. It mainly introduces information such as cable range, terminal size, and thread size.
The 380‑007 backshell is a light‑duty, non‑environmental connector housing that provides strain relief and a Type C rotatable coupling for easy cable management. It supports multiple styles (L, G, etc.) with defined maximum cable ranges and entry sizes.
The document includes tables of cable entry limits, elbow dimensions, and standard finish options. It also notes the optional “-445” NESTOR modification for a non‑detent, spring‑loaded, self‑locking coupling.
| Max Cable Range (Style L) | .850 in (21.6 mm) |
|---|---|
| Max Cable Entry (Style L) | .125 in (3.2 mm) |
| Shell Size – H Style Max | 1.210 in (30.7 mm) |
| Coupling Type | Rotatable Coupling Type C |
The maximum cable entry for Style L is .125 in (3.2 mm), and larger entries are allowed for other styles.
Add “-445” to the part number to specify Glenair’s NESTOR non‑detent, spring‑loaded, self‑locking coupling.
