This is a product manual for Composite Backshells A-70 produced by Glenair. This product is EMI/RFI Micro-Banding Backshells, which has Ultra Low Profile, Self-Locking Rotatable Coupling, Anti-Decoupling Device and other features.

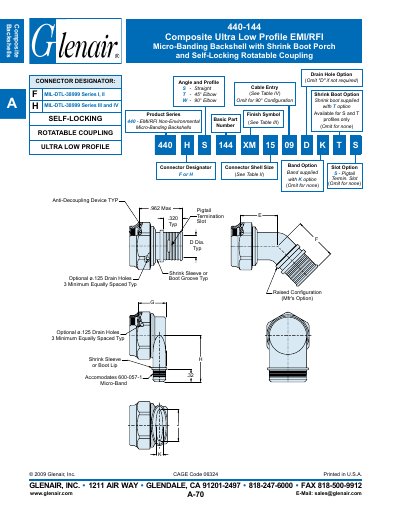

This handbook describes the Glenair 440-144 composite ultra‑low‑profile EMI/RFI backshell, including its micro‑banding design, shrink‑boot porch, and self‑locking rotatable coupling. It lists the connector designators, available shell sizes, cable entry dimensions, and finish options.
Tables give detailed dimensional data for straight and 45° configurations, optional drain‑hole sizes, and finish specifications such as XM2000 electroless nickel. The document also notes optional features like shrink‑boot (T option) and band options.
| Model | 440-144 |
|---|---|
| Connector Series | MIL‑DDL‑38999 Series I, II, III, IV |
| Shell Size Tolerance (G Max) | ±0.03 |
| Finish Option XM2000 | 2000‑hour corrosion‑resistant electroless nickel |
| Drain Hole Option | ø.125, three equally spaced holes |
| Shrink‑Boot Option | T option (shrink boot supplied) |
The model number is 440-144.
It supports MIL‑DDL‑38999 Series I, II, III, and IV.
Finish options include XM2000 (electroless nickel), XMT2000 (nickel‑PTFE), and XW2000 (cadmium/olive drab over electroless nickel).
Optional drain holes are Ø 0.125 in, with a minimum of three equally spaced holes.
