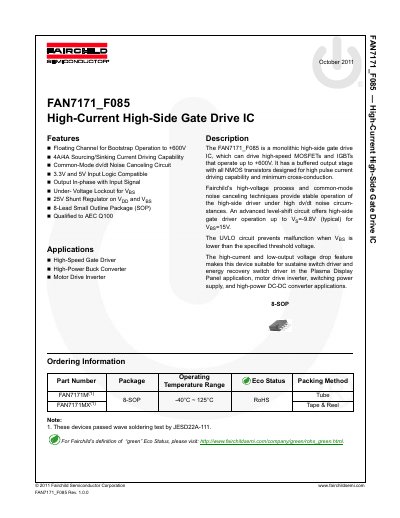

The FAN7171_F085 is a monolithic high-side gate drive IC, which can drive high-speed MOSFETs and IGBTs that operate up to +600V. It has a buffered output stage with all NMOS transistors designed for high pulse current driving capability and minimum cross-conduction. Fairchild’s high-voltage process and common-mode noise canceling techniques provide stable operation of the high-side driver under high dv/dt noise circumstances. An advanced level-shift circuit offers high-side gate driver operation up to VS=-9.8V (typical) for VBS=15V. The UVLO circuit prevents malfunction when VBS is lower than the specified threshold voltage. The high-current and low-output voltage drop feature makes this device suitable for sustained switch driver and energy recovery switch driver in the Plasma Display Panel application, motor drive inverter.
The FAN7171_F085 is a monolithic high-side gate drive IC designed to drive high-speed MOSFETs and IGBTs. It features a floating channel for bootstrap operation up to +600V and includes a common-mode dv/dt noise canceling circuit to ensure stable operation under high noise conditions. The device offers 4A sourcing and sinking current driving capability and is compatible with 3.3V and 5V input logic.
| Sourcing/Sinking Current | 4A/4A |
|---|---|
| Bootstrap Operation Voltage | +600V |
| Logic Compatibility | 3.3V and 5V |
| Operating Temperature Range | -40°C ~ 125°C |
| Package Type | 8-SOP |
| Supply Voltage (VDD) | 10V to 20V |
| High-Side Floating Supply Voltage (VB) | -0.3V to 625V |
Yes, it includes a common-mode dv/dt noise canceling circuit to provide stable operation under high dv/dt noise conditions.
The maximum high-side floating supply voltage is 625.0 V.
