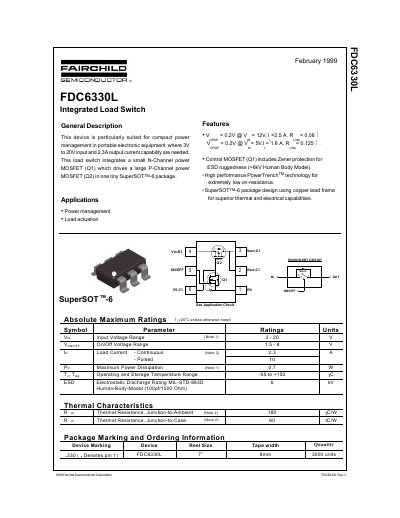

FDC6330L is an integrated load switch from Fairchild Semiconductor. It is particularly suitable for compact power management in portable electronic equipment where 3V to 20V input and 2.3A output current capability are needed. The load switch integrates a small N-Channel power MOSFET (Q1) and a large P-Channel power MOSFET (Q2) in one tiny SuperSOTTM-6 package.
The FDC6330L is an integrated load switch designed for compact power management in portable electronic equipment. It integrates a small N-Channel power MOSFET driving a large P-Channel power MOSFET within a SuperSOT-6 package. The device supports input voltages from 3V to 20V and provides a continuous output current of 2.3A.
| Input Voltage Range | 3-20 V |
|---|---|
| On/Off Voltage Range | 15-8 V |
| Load Current - Continuous | 2.3 A |
| Load Current - Pulsed | 10 A |
| Maximum Power Dissipation | 0.7 W |
| Operating Temperature Range | -55 to +150 °C |
| ESD Rating | 6 kV |
| Thermal Resistance Junction-to-Ambient | 180 °C/W |
| Thermal Resistance Junction-to-Case | 60 °C/W |
The maximum continuous load current is 2.3 A.
The input voltage range is 3V to 20V.
It uses a SuperSOT-6 package design.
