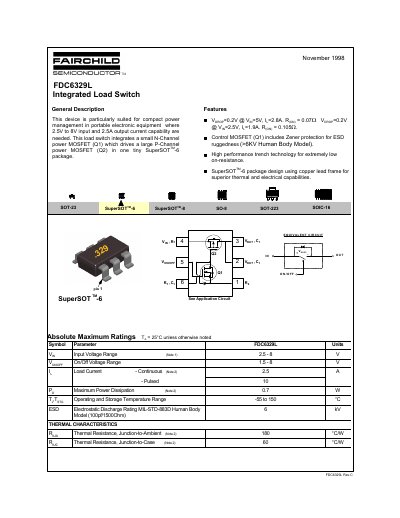

The FDC6329L integrated load switch is a compact power management device for portable electronic equipment that requires an input voltage range of 2.5V to 8V and an output current capability of 2.5A. This load switch integrates a small N-channel power MOSFET (Q1) which drives a large P-channel power MOSFET (Q2) in one tiny SuperSOTTM-6 package.
The FDC6329L is an integrated load switch designed for compact power management in portable electronic equipment. It integrates a small N-Channel power MOSFET driving a large P-Channel power MOSFET within a SuperSOT-6 package. The device supports input voltages from 2.5V to 8V and provides a continuous load current of 2.5A.
| Input Voltage Range | 2.5V to 8V |
|---|---|
| On/Off Voltage Range | 1.5V to 8V |
| Load Current Continuous | 2.5A |
| Load Current Pulsed | 10A |
| Maximum Power Dissipation | 0.7W |
| Operating Temperature Range | -55 to 150 C |
| ESD Rating | 6 kV |
| Thermal Resistance Junction-to-Ambient | 180 C/W |
| Thermal Resistance Junction-to-Case | 60 C/W |
The device supports a continuous load current of 2.5A.
The input voltage range is from 2.5V to 8V.
