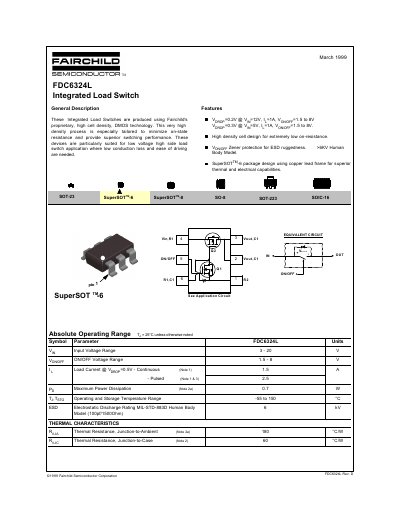

This document describes the features and absolute operating range of the FDC6324L integrated load switch. It is produced using Fairchild's proprietary high cell density DMOS technology, which provides extremely low on-resistance and superior switching performance. It is particularly suited for low voltage high side load switch applications where low conduction loss and ease of driving are required.
The FDC6324L is an integrated load switch produced using Fairchild's proprietary DMOS technology, designed for low voltage high side load switch applications. It features a high density cell design for extremely low on-resistance and includes Zener protection for ESD ruggedness. The device is available in various packages including SuperSOT-6, SuperSOT-8, SOT-23, SOT-223, and SOIC-16.
| Input Voltage Range | 3 to 20 V |
|---|---|
| ON/OFF Voltage Range | 1.5 to 8 V |
| Pulsed Load Current | 2.5 A |
| Maximum Power Dissipation | 0.7 W |
| Operating Temperature Range | -55 to 150 °C |
| ESD Rating | 6 kV |
The maximum continuous load current is 1.5 A.
The input voltage range is 3 to 20 V.
The operating and storage temperature range is -55 to 150 °C.
