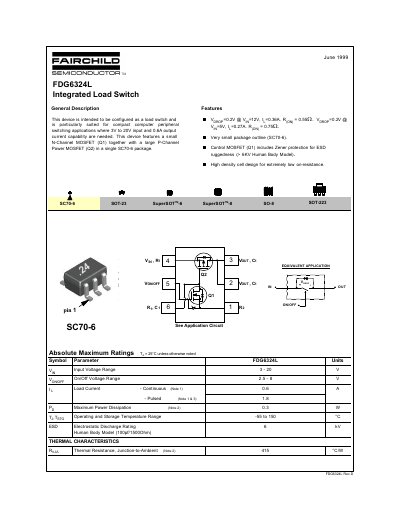

FDG6324L is a load switch from Fairchild Semiconductor that is particularly suitable for compact computer peripheral switching applications where 3V to 20V input and 0.6A output current capability are needed.
The FDG6324L is an integrated load switch designed for compact computer peripheral switching applications. It combines a small N-Channel MOSFET with a large P-Channel Power MOSFET within a single SC70-6 SuperSOT™-6 package, supporting input voltages from 3V to 20V and output currents up to 0.6A continuous or 1.8A pulsed.
The device includes features such as Zener protection for the control MOSFET against ESD (rated > 6KV Human Body Model) and a high-density cell design for low on-resistance. The datasheet provides absolute maximum ratings, electrical characteristics including conduction voltage drop and static on-resistance, typical performance curves, application circuit recommendations, and thermal resistance data.
| Input Voltage Range | 3-20 V |
|---|---|
| On/Off Control Voltage Range | 2.5-8 V |
| Continuous Load Current | 0.6 A |
| Pulsed Load Current | 1.8 A |
| Maximum Power Dissipation | 0.3 W |
| Operating Temperature Range | -55 to 150 °C |
| ESD Rating (Human Body Model) | 6 kV |
| Thermal Resistance Junction-to-Ambient | 415 °C/W |
The maximum continuous load current is 0.6A.
Yes, the Control MOSFET includes Zener protection for ESD ruggedness rated at > 6KV Human Body Model.
The device comes in a small SC70-6 SuperSOT™-6 package.
