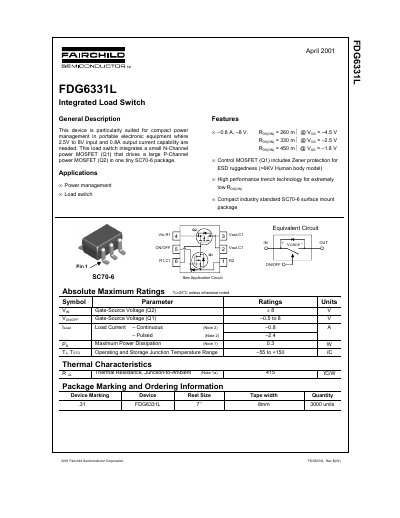

This document describes the features and characteristics of the FDG6331L integrated load switch. This device is particularly suited for compact power management in portable electronic equipment where 2.5V to 8V input and 0.8A output current capability are needed.
The FDG6331L is an integrated load switch designed for power management in portable electronic equipment requiring input voltages from 2.5V to 8V and an output current of up to 0.8A. The device integrates a small N-Channel power MOSFET that drives a large P-Channel power MOSFET within a single SC70-6 surface mount package.
| Input Voltage Range | 2.5V to 8V |
|---|---|
| Package Type | SC70-6 |
| Operating Temperature Range | -55 to +150 °C |
| Maximum Power Dissipation | 0.3 W |
The device is suited for applications requiring 2.5V to 8V input and 0.8A output current capability.
The maximum power dissipation is 0.3 W.
