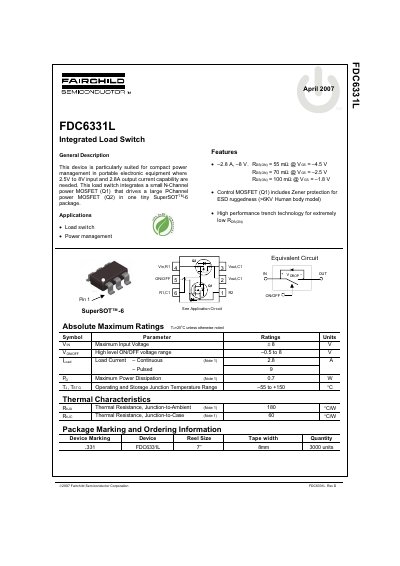

This document introduces the FDC6331L integrated load switch from Fairchild Semiconductor Corporation. This device is particularly suited for compact power management in portable electronic equipment where 2.5V to 8V input and 2.8A output current capability are needed. The load switch integrates a small N-Channel power MOSFET (Q1) that drives a large P-Channel power MOSFET (Q2) in one tiny SuperSOTTM-6 package.
The FDC6331L is an integrated load switch designed for compact power management in portable electronic equipment. It integrates a small N-channel power MOSFET driving a large P-channel power MOSFET within a single SuperSOT-6 package, supporting input voltages from 2.5V to 8V.
| Maximum Input Voltage | +8 V |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | SuperSOT-6 |
The device supports a continuous load current of 2.8A.
The device is suited for applications requiring 2.5V to 8V input.
