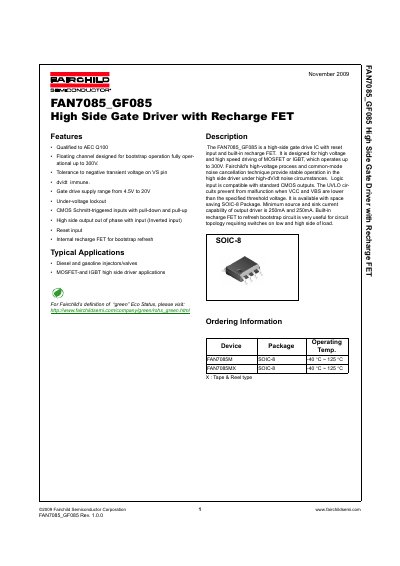

This datasheet introduces the features of FAN7085_GF085 high side gate driver with recharge FET. It is designed for driving MOSFET or IGBT, with the highest operating voltage of 300V. The driver has floating channel design for bootstrap operation, tolerance to negative transient voltage on VS pin, dv/dt immunity, gate drive supply range from 4.5V to 20V, under-voltage lockout, CMOS Schmitt-triggered inputs with pull-down and pull-up, high side output out of phase with input (Inverted input), reset input, internal recharge FET for bootstrap refresh. Typical applications include diesel and gasoline injectors/valves, MOSFET- and IGBT high side driver applications.
The FAN7085_GF085 is a high-side gate drive IC designed for driving MOSFET or IGBT devices operating up to 300V. It features a built-in recharge FET to refresh the bootstrap circuit, making it suitable for applications requiring switches on both the low and high sides of a load. The device includes a reset input and is qualified to AEC Q100 standards.
| Maximum Operating Voltage | 300V |
|---|---|
| Supply Voltage Range | 4.5V to 20V |
| Output Source Current | 250mA |
| Output Sink Current | 250mA |
| Operating Temperature Range | -40°C to 125°C |
| Package Type | SOIC-8 |
The device is designed for high voltage and high speed driving of MOSFET or IGBT, which operates up to 300V.
Yes, it has a built-in recharge FET to refresh the bootstrap circuit, which is useful for circuit topologies requiring switches on low and high sides of the load.
Yes, the device is qualified to AEC Q100 standards.
