FDC6326L is an integrated load switch from Fairchild Semiconductor with a 3V-20V input voltage range and 1.8A output current capability. It is suitable for compact power management in portable electronic equipment.

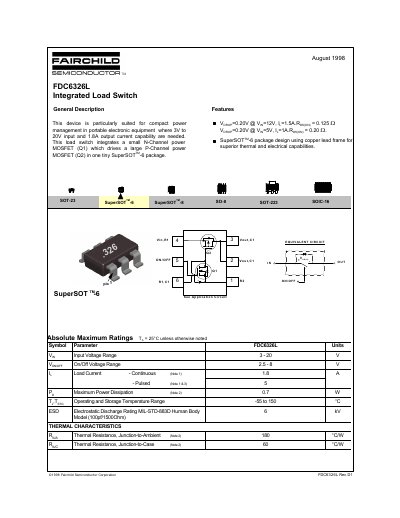

The FDC6326L is an integrated load switch designed for compact power management in portable electronic equipment. It integrates a small N-Channel power MOSFET driving a large P-Channel power MOSFET within a SuperSOTM-6 package, supporting input voltages from 3V to 20V and continuous output currents up to 1.8A.
| Input Voltage Range | 3 - 20 V |
|---|---|
| On/Off Voltage Range | 2.5 - 8 V |
| Continuous Load Current | 1.8 A |
| Pulsed Load Current | 5 A |
| Maximum Power Dissipation | 0.7 W |
| Operating Temperature Range | -55 to 150 °C |
| Thermal Resistance Junction-to-Ambient | 180 °C/W |
| Thermal Resistance Junction-to-Case | 60 °C/W |
The device supports a continuous load current of 1.8 A.
It uses a SuperSOTM-6 package design using a copper lead frame.
Resistor R2 should be selected between 100 and 1k Ω for slew rate control.
