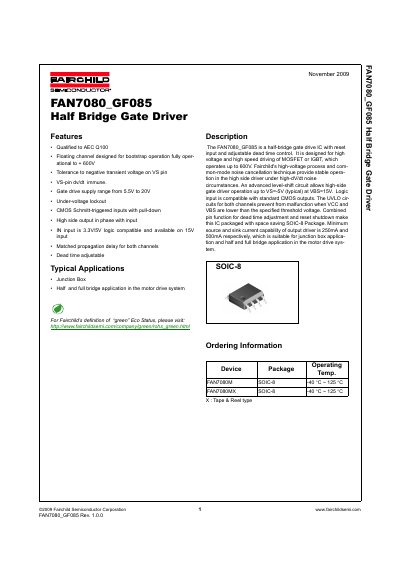

The FAN7080_GF085 is a half-bridge gate driver IC with reset input and adjustable dead time control. It is designed for high voltage and high speed driving of MOSFET or IGBT, which operates up to 600V. Fairchild's high-voltage process and com- mon-mode noise cancellation technique provide stable opera- tion in the high side driver under high-dV/dt noise circumstances.
The FAN7080 is a half-bridge gate drive IC designed for high-voltage and high-speed driving of MOSFET or IGBT devices operating up to 600V. It utilizes Fairchild's high-voltage process and common-mode noise cancellation techniques to ensure stable operation in the high-side driver under high-dV/dt noise circumstances.
| Operating Voltage (VS) | + 600V |
|---|---|
| Gate Drive Supply Range | 5.5V to 20V |
| Output Short Circuit Current (High) | 250mA |
| Package Type | SOIC-8 |
The device operates up to 600V.
Yes, it has a reset input and adjustable dead time control.
