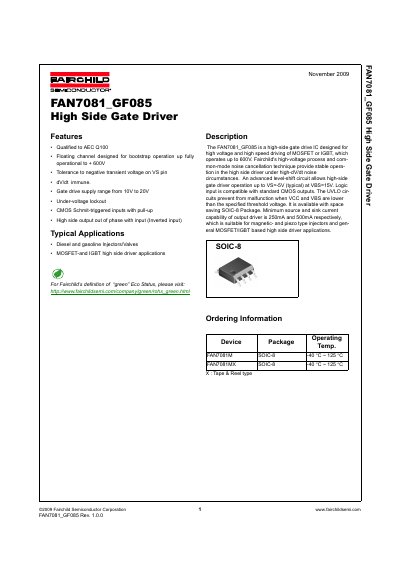

The FAN7081_GF085 is a high-side gate drive IC designed for high voltage and high speed driving of MOSFET or IGBT, which operates up to 600V.
The FAN7081 is a high-side gate drive integrated circuit designed for driving MOSFET or IGBT devices at voltages up to 600V. It utilizes Fairchild's high-voltage process and common-mode noise cancellation techniques to ensure stable operation under high dV/dt noise conditions.
| High side floating supply offset voltage (Max) | +600V |
|---|---|
| Gate drive supply range | 10V to 20V |
| Peak output source current | 250mA |
| Operating temperature range | -40°C to +125°C |
It is suitable for diesel and gasoline injectors/valves, as well as general MOSFET and IGBT high side driver applications.
Yes, it is designed to be dV/dt immune.
